Water is the source of life and the foundation of ecology. From rivers, lakes, and seas to the faucets of thousands of households, the safety of water quality is directly related to ecological security, people's health, and sustainable economic and social development. In the past, monitoring water quality was a tedious and time-consuming task that required manual sampling and laboratory analysis. It was not only inefficient, but also had pain points such as data lag and weak representativeness. Nowadays, with the rapid development of technology, a "smart eye" that integrates multiple functions - a water quality multi parameter sensor - is completely changing the way we perceive and understand the water world.

1、 What is a water quality multi parameter sensor?

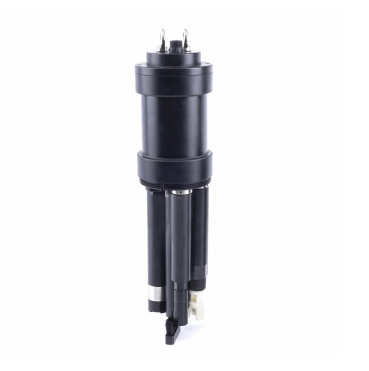

The water quality multi parameter sensor is a highly integrated intelligent monitoring device that can simultaneously, continuously, and in situ measure multiple key physical, chemical, and biological indicators in water using advanced sensing technology.

Its core charm lies in the integration of "multiple parameters". In traditional methods, measuring pH value, dissolved oxygen (DO), conductivity (TDS), turbidity, etc. requires different instruments and reagents. Multi parameter sensors ingeniously integrate multiple independent sensor modules into a probe or a compact system, allowing for a complete set of water quality data to be obtained with just one deployment, greatly improving monitoring efficiency and convenience.

Common core monitoring parameters include:

• Physical indicators: temperature, turbidity, conductivity (total dissolved solids TDS can be calculated).

• Chemical indicators: pH value, oxidation-reduction potential (ORP), dissolved oxygen (DO).

• Comprehensive indicators: chemical oxygen demand (COD), ammonia nitrogen (NH3-N), nitrate (NO3-), chlorophyll-a, blue-green algae, etc. (specific sensor modules are required).

2、 Core technology principles and advantages

The technological cornerstone of multi parameter sensors is various advanced sensing technologies, such as photoelectric sensing, electrochemical sensing, ultrasonic sensing, etc.

PH sensor: Typically, the glass electrode method is used to measure the hydrogen ion concentration by measuring the potential difference on both sides of the glass film.

Dissolved oxygen sensor: The mainstream method is fluorescence quenching (optical method). The fluorescent substance on the surface of the sensor is excited by light of a specific wavelength, and the concentration of oxygen in the water affects the fluorescence intensity and lifetime. By measuring these changes in optical properties, the dissolved oxygen content can be accurately calculated. This method does not require electrolyte, requires minimal maintenance, and has high stability.

Turbidity sensor: It often uses the principle of 90 ° or 180 ° scattered light to emit a beam of light and measure the intensity of light scattered by suspended particles in water, thereby determining the degree of turbidity of the water.

Conductivity sensor: Based on Ohm's law, its conductivity is calculated by measuring the resistance of water between two electrodes.

Its significant advantages lie in:

• Real time and continuity: Provides a 7x24 hour uninterrupted data stream that can capture transient and sudden abnormal changes in water quality, which cannot be compared to manual sampling.

• In situ monitoring: Sensors are directly placed in the tested water body, avoiding potential qualitative changes that may occur during sample transportation and storage, resulting in more authentic and representative data.

• High efficiency and low cost: One machine can be used for multiple purposes, saving the cost and time of frequent sampling and extensive laboratory analysis. In the long run, the comprehensive benefits are extremely high.

• Integration and Intelligence: Deeply integrated with modern Internet of Things (IoT) technology, data can be transmitted in real-time to cloud platforms through wireless technologies such as 4G/5G, LoRa, NB IoT, etc., enabling remote monitoring, big data analysis, and intelligent warning.

3、 Widely applicable scenarios

This' Eye of Wisdom 'is playing a crucial role in various industries:

• Environmental monitoring and ecological protection: used for long-term ecological monitoring of rivers, lakes, reservoirs, oceans and other water bodies, assessing environmental risks such as eutrophication and algal blooms, and providing data support for governance decisions.

• Smart City and Water Management: Installed at the inlet, process treatment unit, and outlet of water plants to achieve closed-loop monitoring of water quality throughout the entire process, ensuring the safety of drinking water; Used for monitoring the inflow and outflow of urban drainage networks and sewage treatment plants to improve operational efficiency.

• Aquaculture: In high-density aquaculture ponds, key parameters related to fish survival such as pH and dissolved oxygen are monitored in real-time. Once abnormal, an alarm is immediately triggered and equipment such as aerators can be linked to effectively avoid risks and reduce economic losses.

• Industrial process and emission monitoring: In industries such as food, pharmaceuticals, and chemicals, monitor the quality of water used in production processes; At the same time, strict monitoring of wastewater discharge from enterprise sewage outlets to ensure compliance with standards is the "frontline sentry" of environmental protection supervision.

• Scientific research and hydraulic engineering: providing high-frequency and high-precision raw data for scientific research in fields such as hydrology, geology, and environment; Used for ensuring water quality and safety in large-scale water transfer projects such as the South to North Water Diversion Project.

4、 Challenges and Future Prospects

• Despite its outstanding advantages, multi parameter sensors also face some challenges: biofouling can affect sensor accuracy, requiring advanced anti pollution materials or automatic cleaning devices; The complex water environment places higher demands on the long-term stability and anti-interference ability of sensors; Meanwhile, the high initial investment and professional maintenance requirements have also to some extent limited its popularity.

• Looking ahead to the future, the development of multi parameter water quality sensors will present the following trends:

• Miniaturization and lower power consumption: Sensors based on MEMS (Micro Electro Mechanical Systems) technology will be smaller and more energy-efficient, suitable for mobile monitoring platforms such as drones and underwater robots, as well as long-term unmanned scenarios.

• Higher integration and more parameters: In the future, a sensor may be able to integrate dozens of monitoring functions, even including difficult to measure indicators such as heavy metals and organic pollutants.

• Self cleaning and self calibration: The application of intelligent materials and new technologies will effectively solve the problem of biological pollution and achieve self diagnosis and automatic calibration of sensors, greatly reducing maintenance costs.

• Deep integration of artificial intelligence: Combining AI algorithms, sensors can not only provide data, but also perform trend prediction, pollution tracing, and intelligent diagnosis, moving from "perception" to "cognition" and "decision-making".

Conclusion

The water quality multi parameter sensor, the "smart eye" that insight into the water world, has become an indispensable core infrastructure for building digital water management and smart environmental protection. It makes the previously invisible changes in water quality clear, visible, manageable, and controllable. With the continuous evolution of technology and the continuous decline of costs, it will inevitably integrate deeper and wider into our lives, providing unprecedented powerful momentum for safeguarding that clear water and ensuring global water security.
