Online multi-parameter water quality sensors reduce installation points and wiring costs. However, selection should not only focus on "how many parameters can be measured". Taking the ZW-MPS-PR online multi-parameter self-cleaning sensor as an example, follow the 6 steps below to avoid selection errors effectively.

1. Define mandatory monitoring parameters

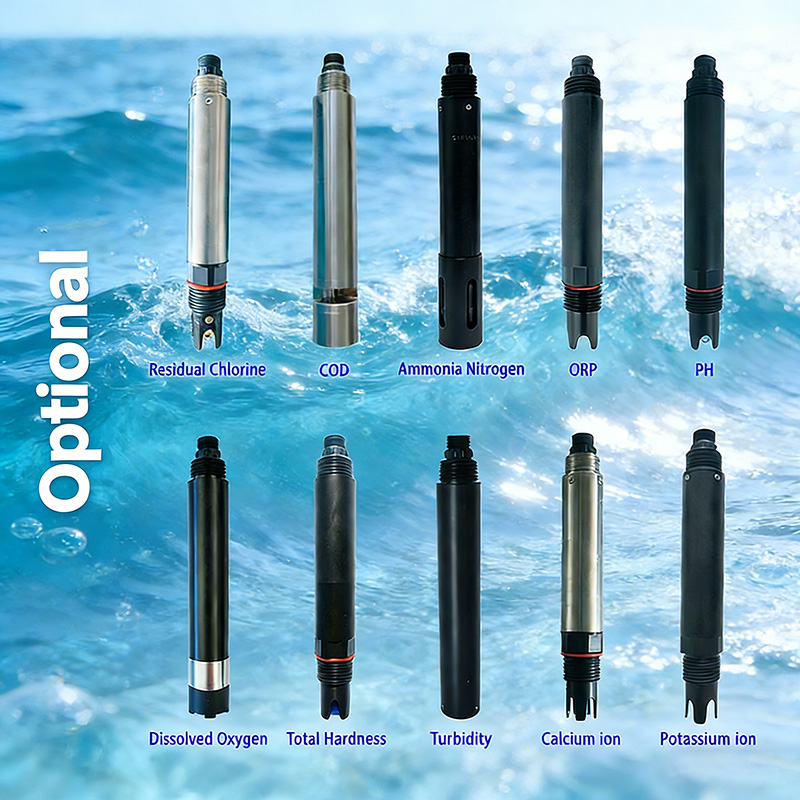

The ZW-MPS-PR can integrate dissolved oxygen, COD, pH, ORP, conductivity/salinity, ammonia nitrogen, turbidity, etc. It can measure up to 8 parameters simultaneously (including temperature), with custom configurations available.

• Surface water: pH, dissolved oxygen, turbidity, ammonia nitrogen
• Wastewater treatment: COD, ammonia nitrogen, ORP, dissolved oxygen
• Seawater/salinity monitoring: conductivity/salinity, pH, dissolved oxygen

Do not over-specify; only select parameters required for reporting.

2. Verify measuring range and accuracy

Too small a range causes overflow; excessively large range compromises measurement accuracy.

3. Confirm communication and power supply

• Output: RS-485, Modbus/RTU
• Default communication settings: 9600, n, 8, 1, Slave Address 06
• Power supply: 12VDC±5%
• Power consumption: 5W@12V

Before purchase, confirm your PLC, RTU or data platform supports Modbus/RTU protocol.

4. Check installation and protection

• Protection class: IP68
• Housing: POM + 316L stainless steel
• Installation type: Submersible
• Operating conditions: 0~40℃, ≤0.2MPa
• Connector: M16-5 waterproof connector
• Wiring definition: Red = 12V, Black = GND, Blue = 485A, White = 485B

The measuring unit shall be fixed via lifting ring or pipe thread. Do not bear weight directly on the cable.

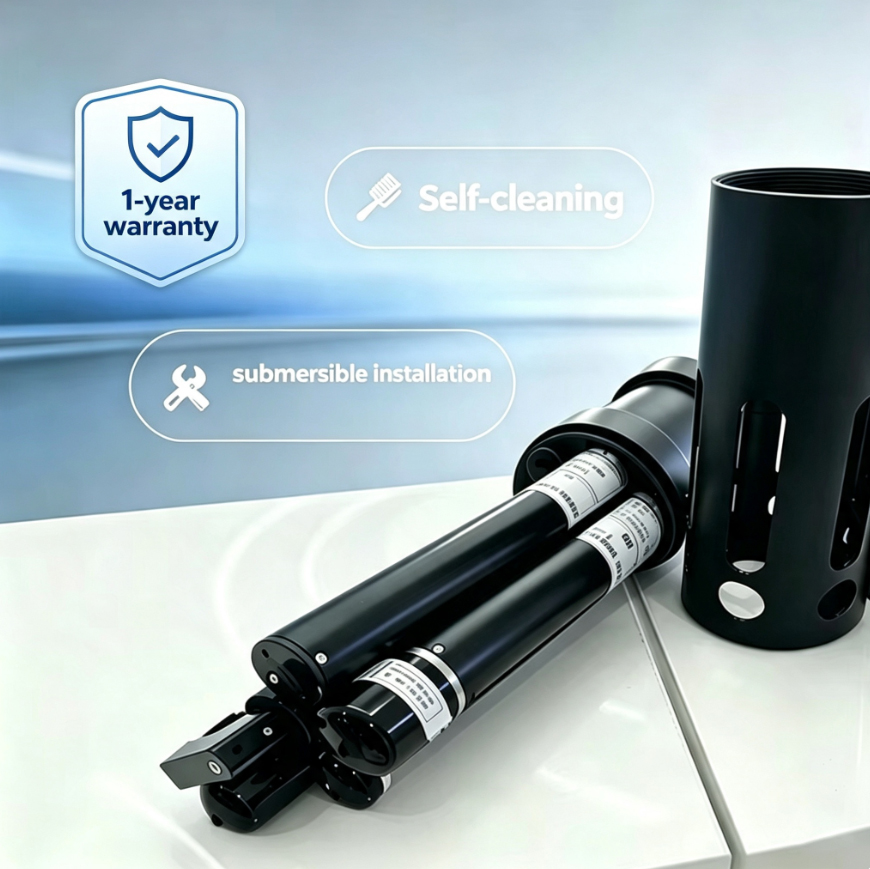

5. Evaluate self-cleaning function & maintenance

The ZW-MPS-PR is equipped with an automatic cleaning system. Cleaning interval and cycle can be set to mitigate biofouling. Periodic inspection, manual cleaning and calibration are still required. Stubborn contaminants can be cleaned with mild household detergent. Calibration shall be performed with corresponding standard solutions per sensor specifications.

6. Confirm warranty and accessories

Dissolved oxygen, turbidity and conductivity/salinity sensors normally come with a 1-year warranty. Standard package includes sensor, user manual, certificate of conformity, 5m cable and matching standard solutions.

FAQ

Q: What is the maximum number of measurable parameters? A: Up to 8 parameters (including temperature), custom configuration supported.

Q: What signal output does it have? A: RS-485 with Modbus/RTU protocol.

Q: What is its protection rating? A: IP68, suitable for submersible installation.
